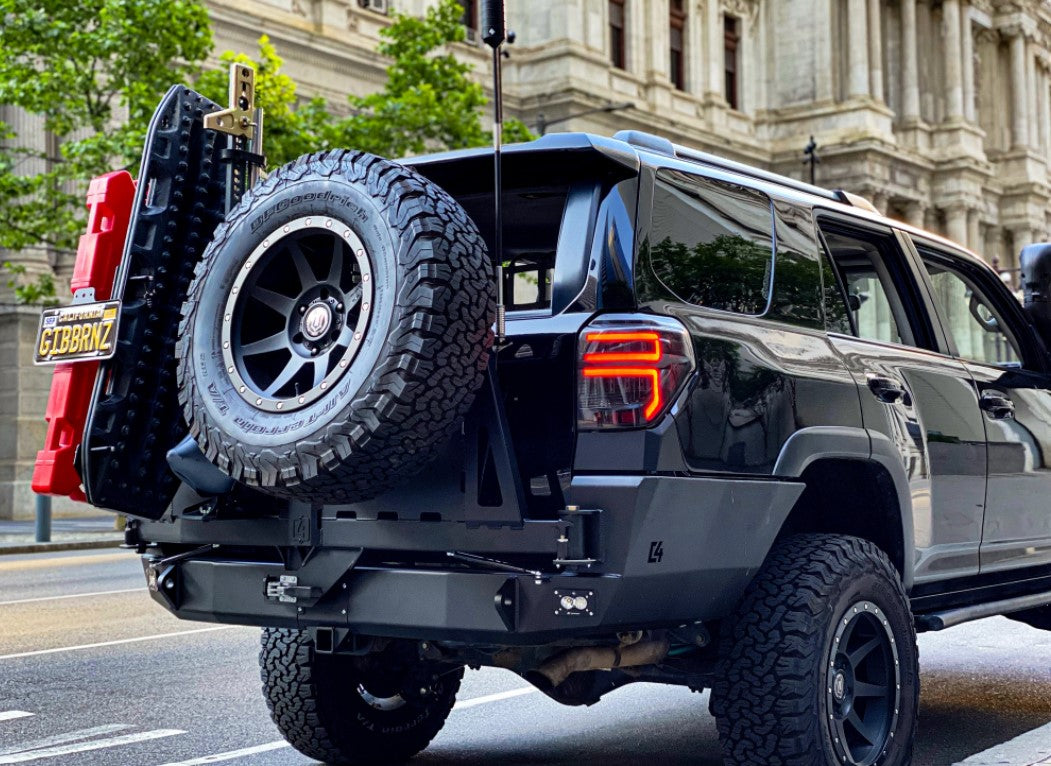

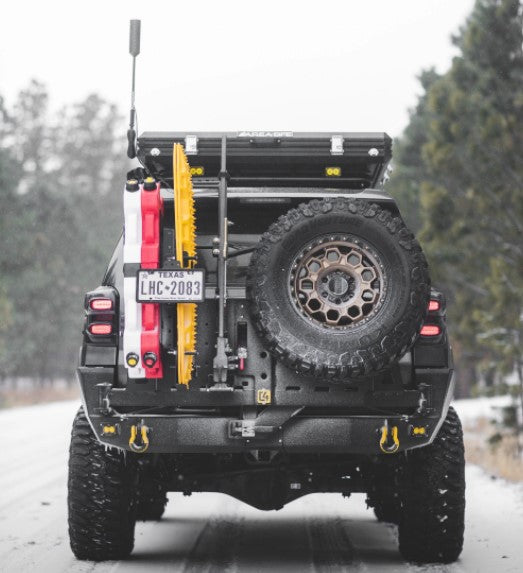

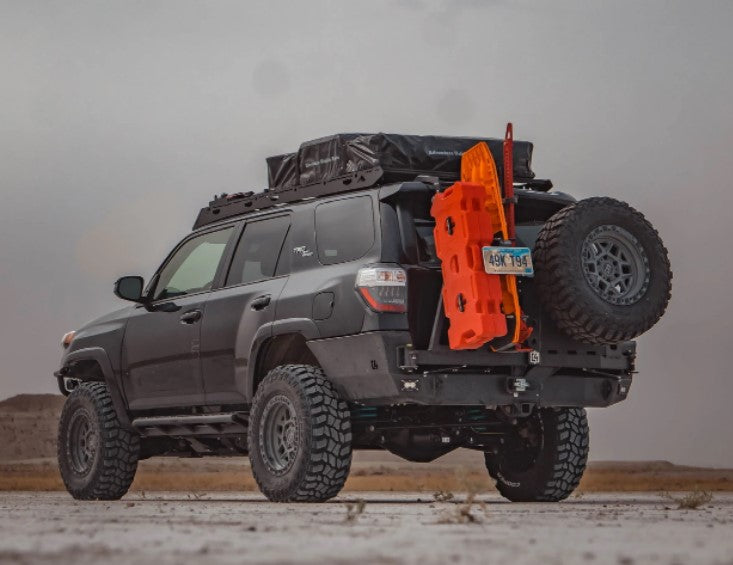

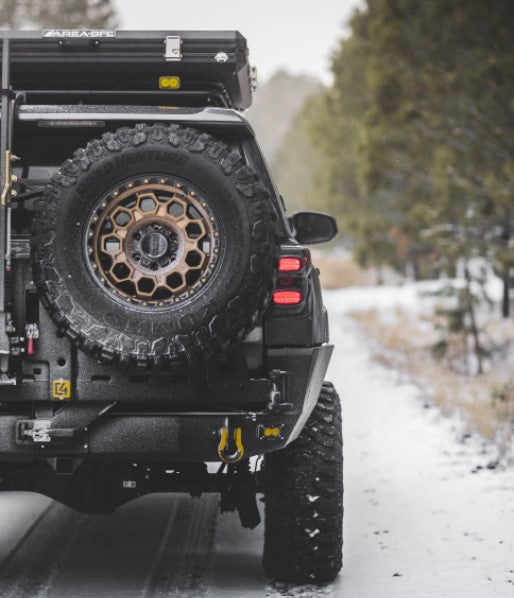

4RUNNER OVERLAND SERIES REAR BUMPER / 5TH GEN / 2010+

The C4 4Runner Overland Series Rear Bumper is a full replacement, no cut design for your 2010+ 4Runner. Includes a license plate mount kit with light, all necessary hardware, and retains the camera functionality. Every swing out comes with a camp table, holes for CB antennas, and zip tie tabs for easy routing of wires.

• Bolt-on receiver hitch that maintains factory tow capacity. (hitch not DOT weight rated)
• When bolt on hitch is removed this is the highest clearance available of any rear bumper for 5th gen 4runner.

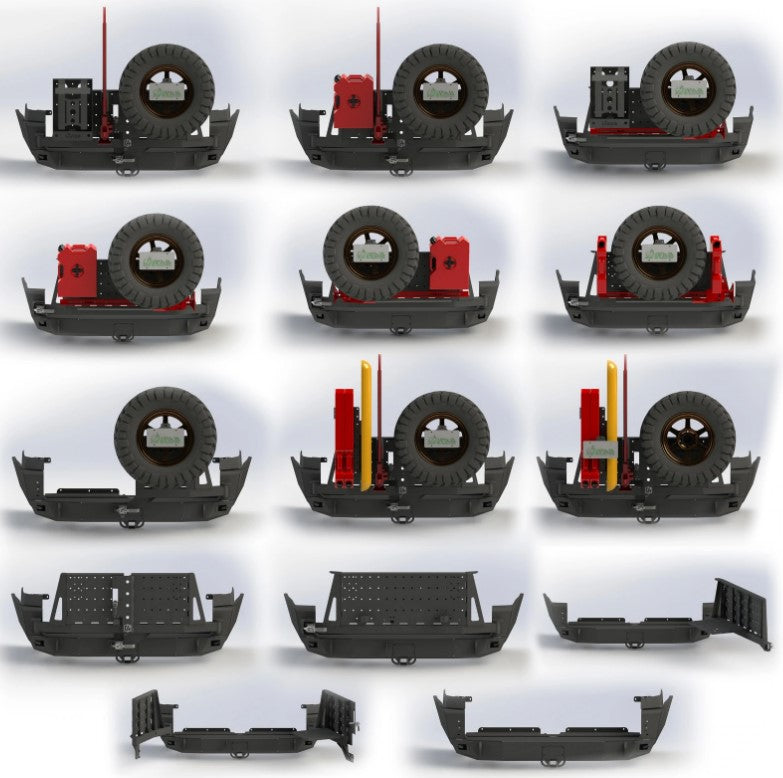

• Multiple mounting hole patterns on swing outs allow for various accessory mounting configurations.
• Swing out latching systems are easy to use, heavy duty and greatly minimize swing arm shake compared to other brands on the market.
• Main bumper structure designed with extra bracing inside to greatly reduce bumper twist and sag when swing out’s are open.
• Swing out’s fit up to 35″ tire.
• Bumper mounting system allows bumper to adjust in every direction so the perfect fit and finish can be achieved.
• Light weight steel filler piece attaches to the body of the vehicle below the tail light. This piece allows for a tight fit around the tail light and an even reveal along the bumper lines to prevent unsightly gaps.
• Compatible with C4 Summit hatch ladder and the GOBI ladder.
• NOT compatible with 2021+ BSM
• Base bumper with no swing outs weighs 160lbs, with half swing the bumper weighs 200lbs, and with single or dual swing the bumper weighs 235lbs.
• Made from various thicknesses of steel to reduce weight as much as possible while maintaining a very strong bumper.
• SHIPS BARE STEEL, C4 does not offer powder coating services. Bumper will need to be painted or powder coated before installation to prevent rust.

Notes:

• On Half Swing Bumper: Tire mount must be removed to bolt on other accessories.
• Single (2 Gallon Rotopax) can be mounted flat on the swing arm without use of our mount.
• Maxtrax brand mounting pins recommended / RotoPax brand mount not included & required to use with our mount.
• Our Rotopax/Maxtrax Combo Mount is ideal for stacking up to 2, 4 Gallon Rotopax and 4 Maxtrax stacked while maintaining space for our vertical Hi-Lift Mount.
• All of our mounts can be adjusted vertically on our swing arms according to preference.
